Robotturn® robotized, compact turning center equipped with built-in robot and parts pallet system is engineered to handle complex turning applications and maximize productivity. Robotized turning cells are designed to be the perfect solution for a cost effective production.
"Zero loss time" servo loader
The loader has a high-speed loading cycle time of 1,5 -12 seconds per full sequence of loading/unloading. The exceptional total balance that has been achieved by integrating the loader with the machine has lead not only to high productivity but also a broad range of other benefits including space savings and joint maintenance during after service.

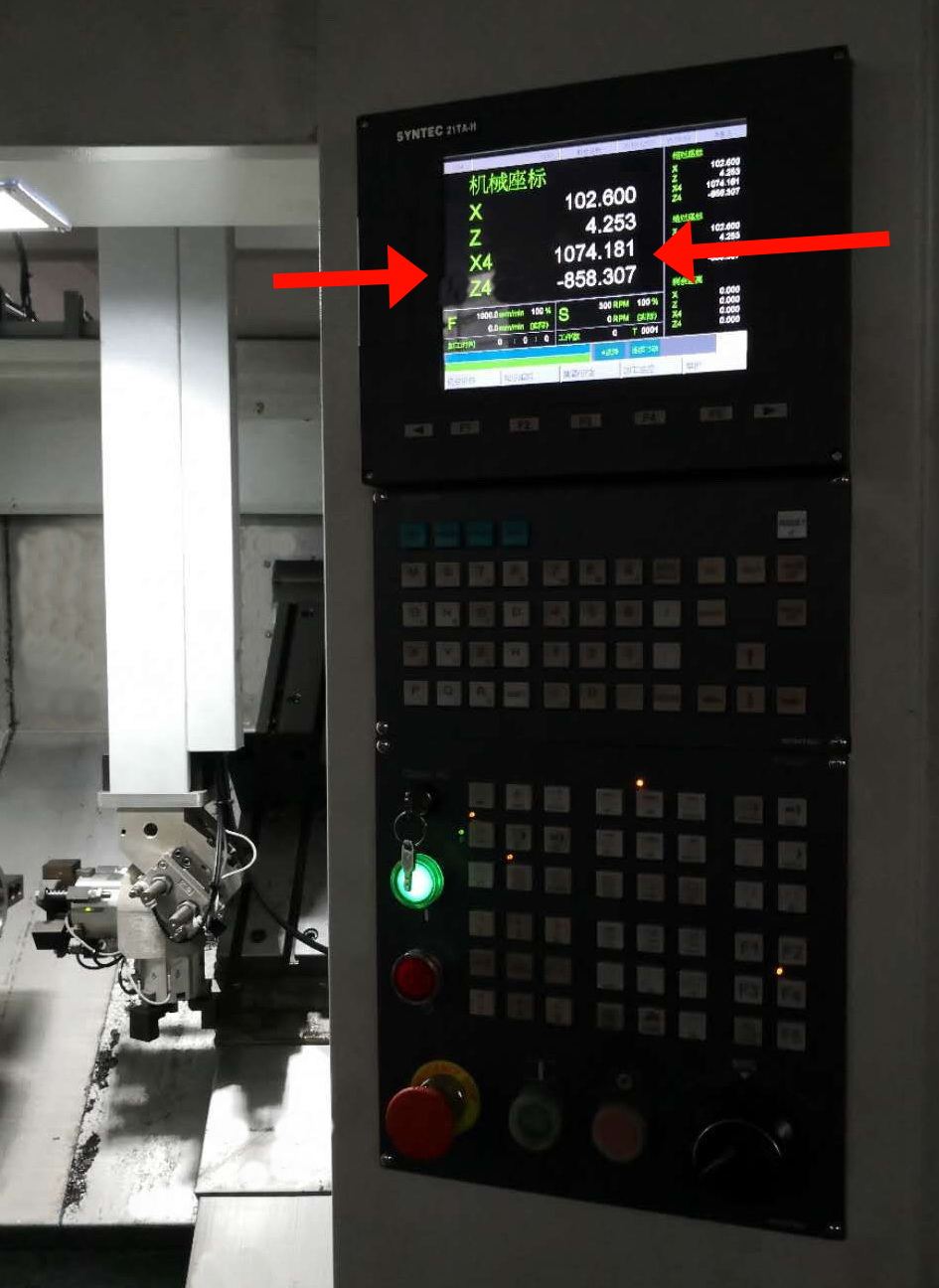

- Machine equipped with a dedicated controller that enables even a novice to complete setup reliably and simply.
- Since the loader is installed on the machine itself, no additional space is used (space savings).
- A new type of linear guide that does require a minimum lubrication is used, cutting running costs.
Soft quality check counter with Quality check chute
Finished workpieces every preset numbers are periodically discharged to outside machine in the quality chute. If the operator is not checking this parts in time the production will stop as the machine can not guarantee perfect parts. This prevents producing scrap parts. Operators can get warning by Sound or light signal or by SMS or message. This prevent you from making wrong parts
Standard work cleaning/air-blow station
This Flexy-cell Standard equipment allows cleaning/drying the workpiece using dry air. This work cleaning system is designed to remove adhered chips, coolant liquids, dust etc. before transferring the workpiece out of the machine. Keeps your machine environment clean and dry.
Saves enormously quantity of coolant-liquid
Every part that is not dryed takes wwith him some drops of coolant liquid. This 24/24 results in several liter of coolant liquid lost per day. As good coolant additive is VERY EXPENSIVE, by blowing th eparts clean and dry, we not only give better and cleaner parts, but we save montly several hundreds EUROS per machine in coolant recuperation.
In a majority of the applications, the integrated gantry loader is able to handle the workpiece through all the peripherals, without the necessity for any additional handling units or robots. Robotturn’s automation solutions are ultimately economical and help in reducing the cost per work piece finally, even in low wages countries like India, China, East Europe and Brazil where traditionally labour cost is considered very cheap.
The Robotturn technical team is fully geared up to give the best application proposals for CNC turning machines with integrated automation. Talk with them to get an affordable and profitable robotized solution.
Easy Loader Programming
The loader travel pattern is well defined with system requirement. By just establishing teach points on the variables, the loader program is
Years of experience made it possible to use a single spindle lathe for two-side turning. Many applications of 2-side turning can be done on a single spindle robotturn.
Call "Patrick" +32 (0)475736351 (Belgium)
He will explain you all about our Machines.
(Nederlands - Français - English - Deutsch)
Stocker / Gauge Unit / Peripheral device/ Standard Stocker/ Inlet/Outlet Conveyor /Wash Unit /Tray Changer/ Indexing pallet feeder table/Workpiece checking Unit /Aslope stocker /Part orientation /Post Process Gauge /Inlet/Outlet shuttle/ Direct Post Process Gauge /Parts Feeder Turn-around Unit/ Inlet/Outlet chute/ Deburring Unit /Interface for special unit /Auto Tray Changer/
